This tutorial walks through the object-oriented Rugprint workflow using the Palmer Penguins dataset. The goal is not to make a complete pairplot. The goal is to choose a small set of bivariate projections and arrange them so one highlighted observation can be followed through shared one-dimensional rugs.
Start by loading the demo data and the object-oriented constructor. The load(...) function returns a Rugprint object; call .plot() when you are ready to draw.
from pathlib import Path
from rugprint.core import load_penguins, load, rugprint, rank_pair_separation
penguins = load_penguins()
penguins.head()| species | island | bill_length_mm | bill_depth_mm | flipper_length_mm | body_mass_g | sex | year | |
|---|---|---|---|---|---|---|---|---|
| 0 | Adelie | Torgersen | 39.1 | 18.7 | 181.0 | 3750.0 | male | 2007 |
| 1 | Adelie | Torgersen | 39.5 | 17.4 | 186.0 | 3800.0 | female | 2007 |
| 2 | Adelie | Torgersen | 40.3 | 18.0 | 195.0 | 3250.0 | female | 2007 |
| 3 | Adelie | Torgersen | 36.7 | 19.3 | 193.0 | 3450.0 | female | 2007 |
| 4 | Adelie | Torgersen | 39.3 | 20.6 | 190.0 | 3650.0 | male | 2007 |
The cleaned demo dataset keeps the four numeric measurements used throughout the vignette and drops rows with missing values.
features = [
"bill_length_mm",
"bill_depth_mm",
"flipper_length_mm",
"body_mass_g",
]
group = "species"
penguins[features + [group]].describe(include="all")| bill_length_mm | bill_depth_mm | flipper_length_mm | body_mass_g | species | |
|---|---|---|---|---|---|
| count | 342.000000 | 342.000000 | 342.000000 | 342.000000 | 342 |
| unique | NaN | NaN | NaN | NaN | 3 |
| top | NaN | NaN | NaN | NaN | Adelie |
| freq | NaN | NaN | NaN | NaN | 151 |
| mean | 43.921930 | 17.151170 | 200.915205 | 4201.754386 | NaN |
| std | 5.459584 | 1.974793 | 14.061714 | 801.954536 | NaN |
| min | 32.100000 | 13.100000 | 172.000000 | 2700.000000 | NaN |
| 25% | 39.225000 | 15.600000 | 190.000000 | 3550.000000 | NaN |
| 50% | 44.450000 | 17.300000 | 197.000000 | 4050.000000 | NaN |
| 75% | 48.500000 | 18.700000 | 213.000000 | 4750.000000 | NaN |
| max | 59.600000 | 21.500000 | 231.000000 | 6300.000000 | NaN |
rank_pair_separation(...) is a lightweight helper. It computes species centroids for every feature pair and ranks pairs by their mean between-species centroid distance. This is not a statistical test; it is a practical way to find projection panels that may separate groups visually.
rank_pair_separation(penguins, features, group=group)| x | y | mean_centroid_distance | |
|---|---|---|---|
| 0 | bill_length_mm | body_mass_g | 917.418587 |
| 1 | flipper_length_mm | body_mass_g | 917.224848 |
| 2 | bill_depth_mm | body_mass_g | 916.905540 |
| 3 | bill_length_mm | flipper_length_mm | 20.543409 |
| 4 | bill_depth_mm | flipper_length_mm | 18.316375 |
| 5 | bill_length_mm | bill_depth_mm | 7.689819 |
A Rugprint layout is a dictionary from projection pair to (row, column). Missing cells stay empty. For this tutorial, the layout is a chain of shared variables:
bill_length_mm links the top panel to the center-left panel.flipper_length_mm links the center-left panel to the center-right panel.body_mass_g links the center-right panel to the lower-right panel.That chain is what lets the highlighted observation feel continuously tracked across the map.
projections = [
("bill_length_mm", "bill_depth_mm"),
("bill_length_mm", "flipper_length_mm"),
("body_mass_g", "flipper_length_mm"),
("body_mass_g", "bill_depth_mm"),
]
layout = {
("bill_length_mm", "bill_depth_mm"): (0, 1),
("bill_length_mm", "flipper_length_mm"): (1, 1),
("body_mass_g", "flipper_length_mm"): (1, 2),
("body_mass_g", "bill_depth_mm"): (2, 2),
}The object stores the data, projections, layout, group colors, highlight row, and diagram styling. This makes it easy to reuse the same map while changing the highlighted observation or plotting options.
rp = load(
penguins,
projections=projections,
layout=layout,
group=group,
highlight=0,
title="Palmer Penguins projection-rug fingerprint",
diagram_mode=True,
show_axis_labels=False,
show_tick_labels=False,
connect_shared_rugs=True,
connector_style="dotted",
panel_gap=0.04,
rug_gap=0.01,
rug_edges="shared",
)
rp<rugprint.core.Rugprint>In diagram mode, Rugprint removes most axis furniture by default. The rugs, local dashed guides, and subtle inter-panel connectors do the explanatory work.

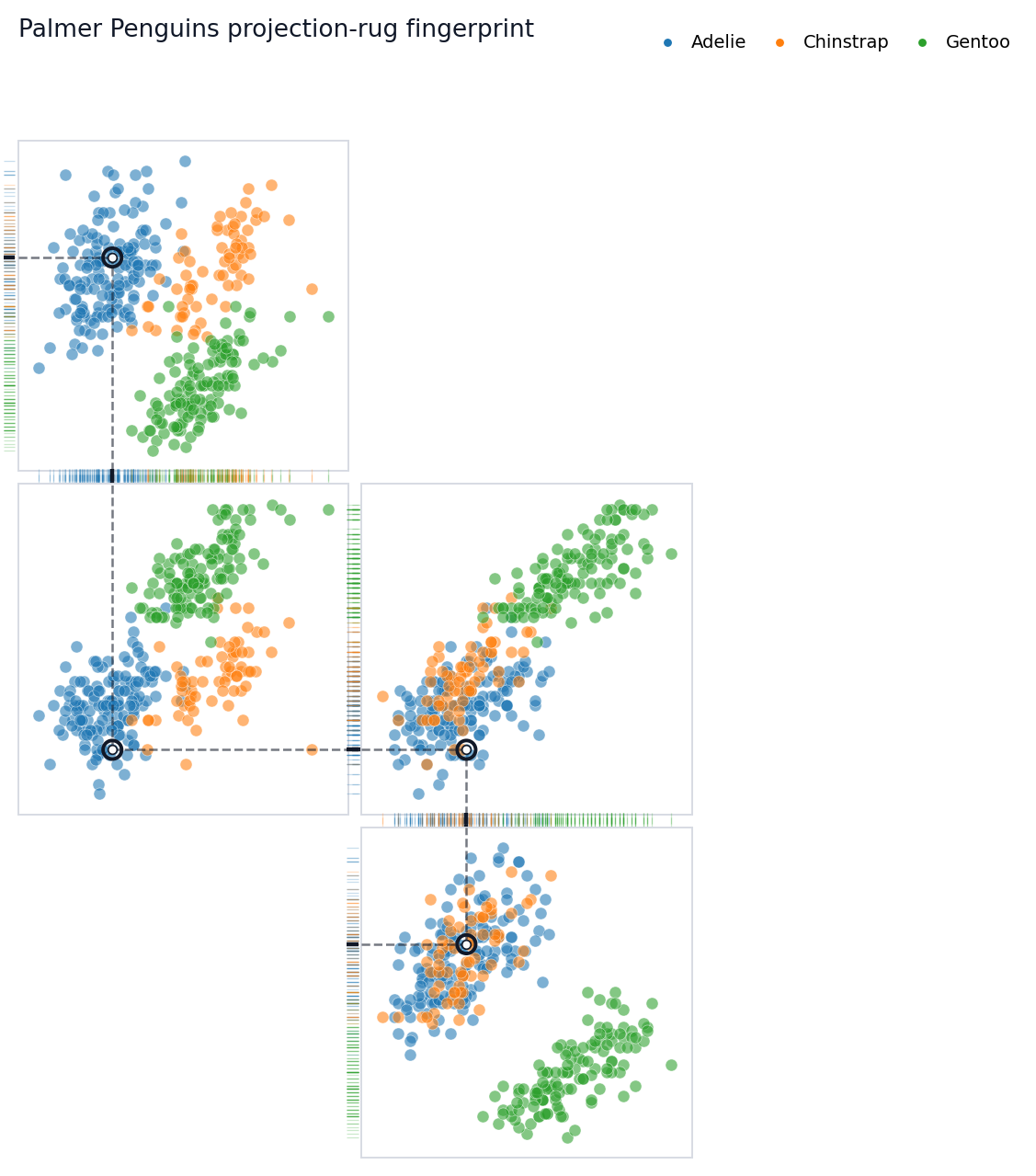

fig = rp.plot()
figure_dir = Path("figures")
if Path.cwd().name == "nbs":
figure_dir = Path("..") / figure_dir
figure_dir.mkdir(exist_ok=True)
fig.savefig(
figure_dir / "rugprint_penguins_tutorial.png",
dpi=200,
bbox_inches="tight",
)
Use .with_highlight(...) to keep the same map specification and change only the tracked observation. This is useful for comparing how individual penguins reappear across several measurement spaces.

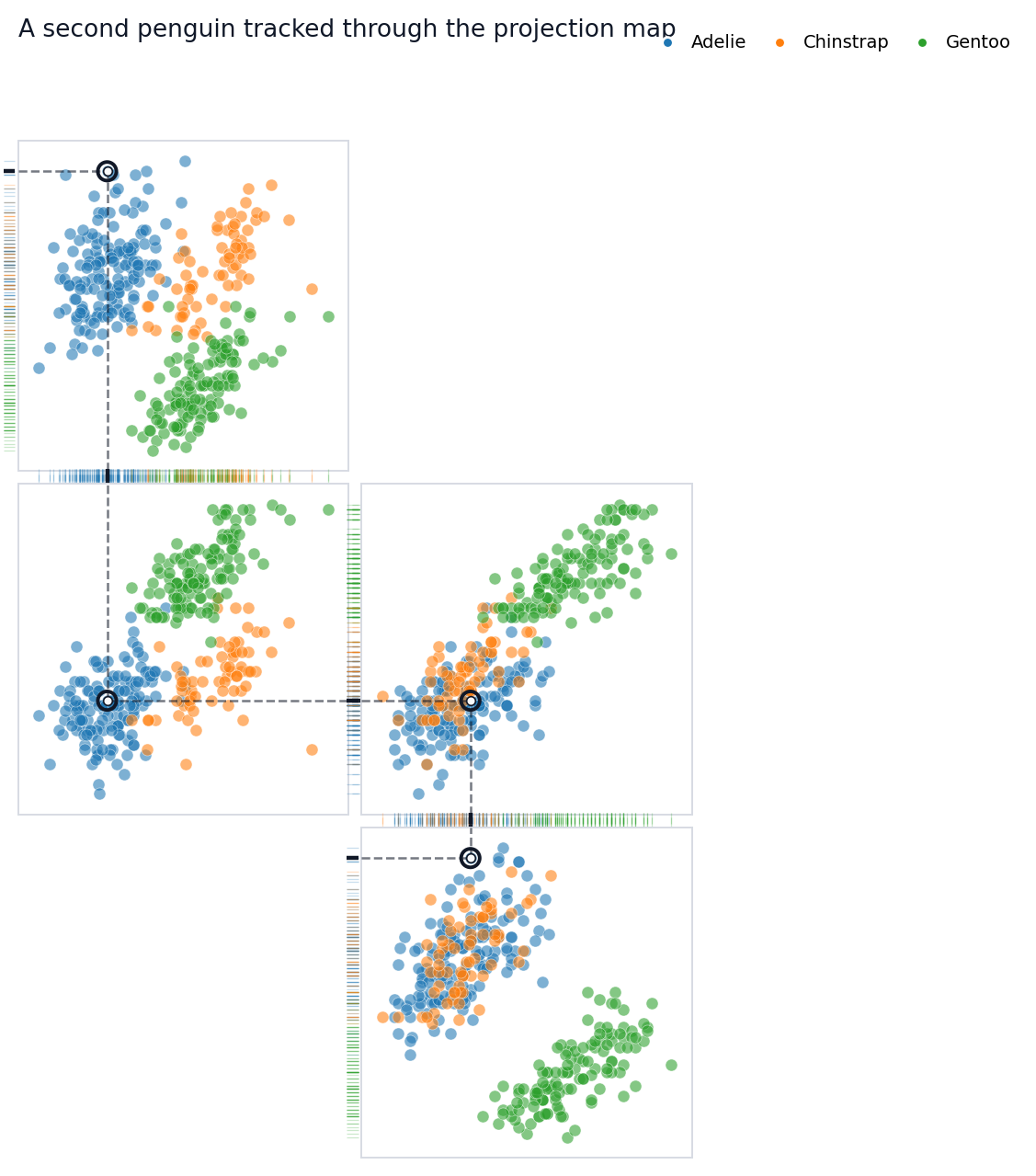

fig = rp.with_highlight(12).plot(
title="A second penguin tracked through the projection map",
)
You can pass an integer row position or a dataframe index label to highlight. The emphasized point appears in every projection panel. Local dashed guides show its one-dimensional x and y projections, while dotted segments in shared rug gutters connect adjacent panels that share the same variable.
The default diagram hides axis labels and tick labels because labels can interrupt rug connections. For explanatory notebooks or presentations, you may temporarily turn labels back on.

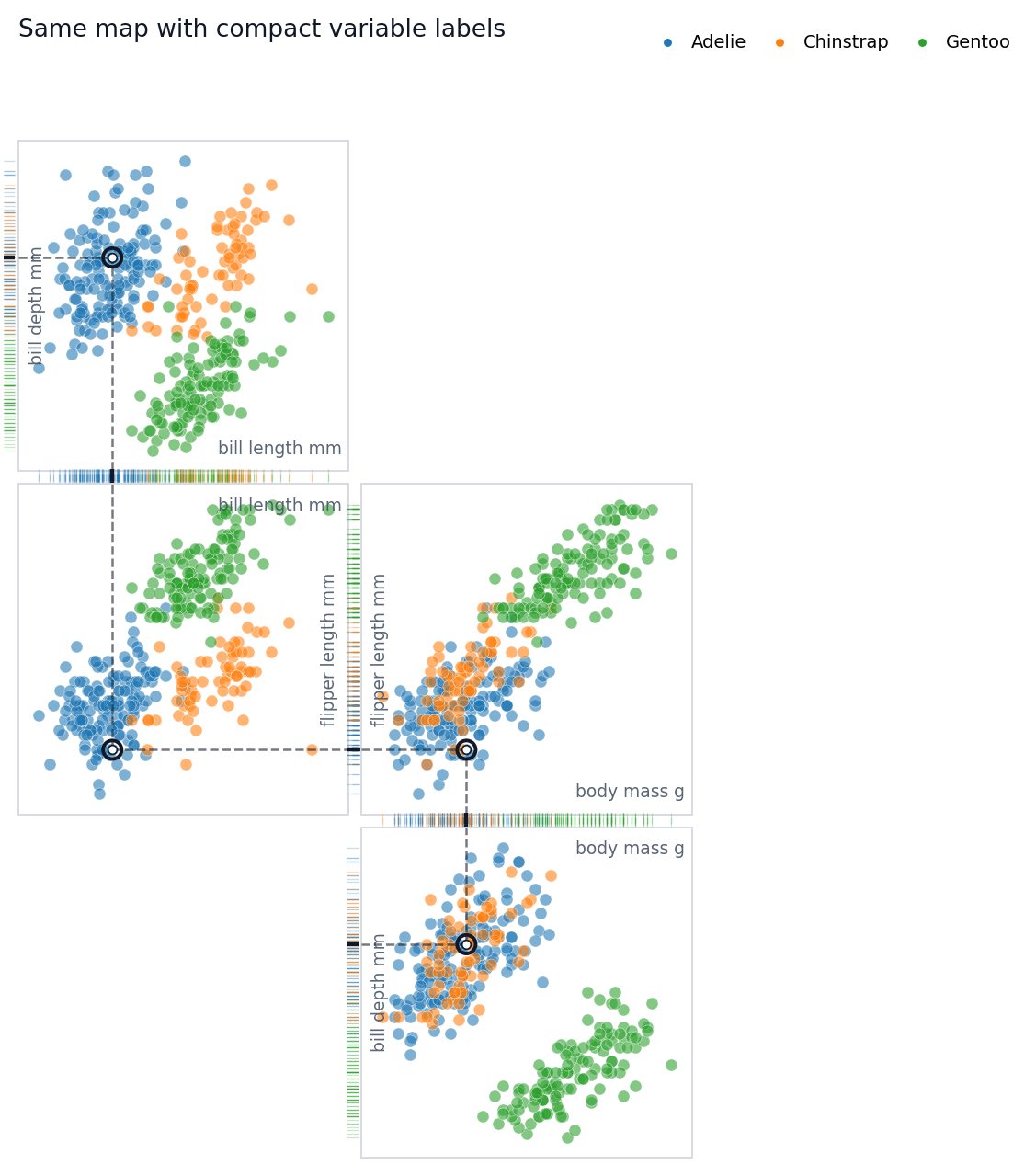

fig = rp.plot(
show_axis_labels=True,
show_tick_labels=False,
title="Same map with compact variable labels",
)
rug_edges controls which panel edges receive rugs:
"shared": put rugs on facing edges when adjacent panels share a variable."minimal": use bottom x rugs and left y rugs."outer": use bottom x rugs and outer-facing y rugs.The default tutorial uses "shared" because it makes the highlighted trace feel continuous.

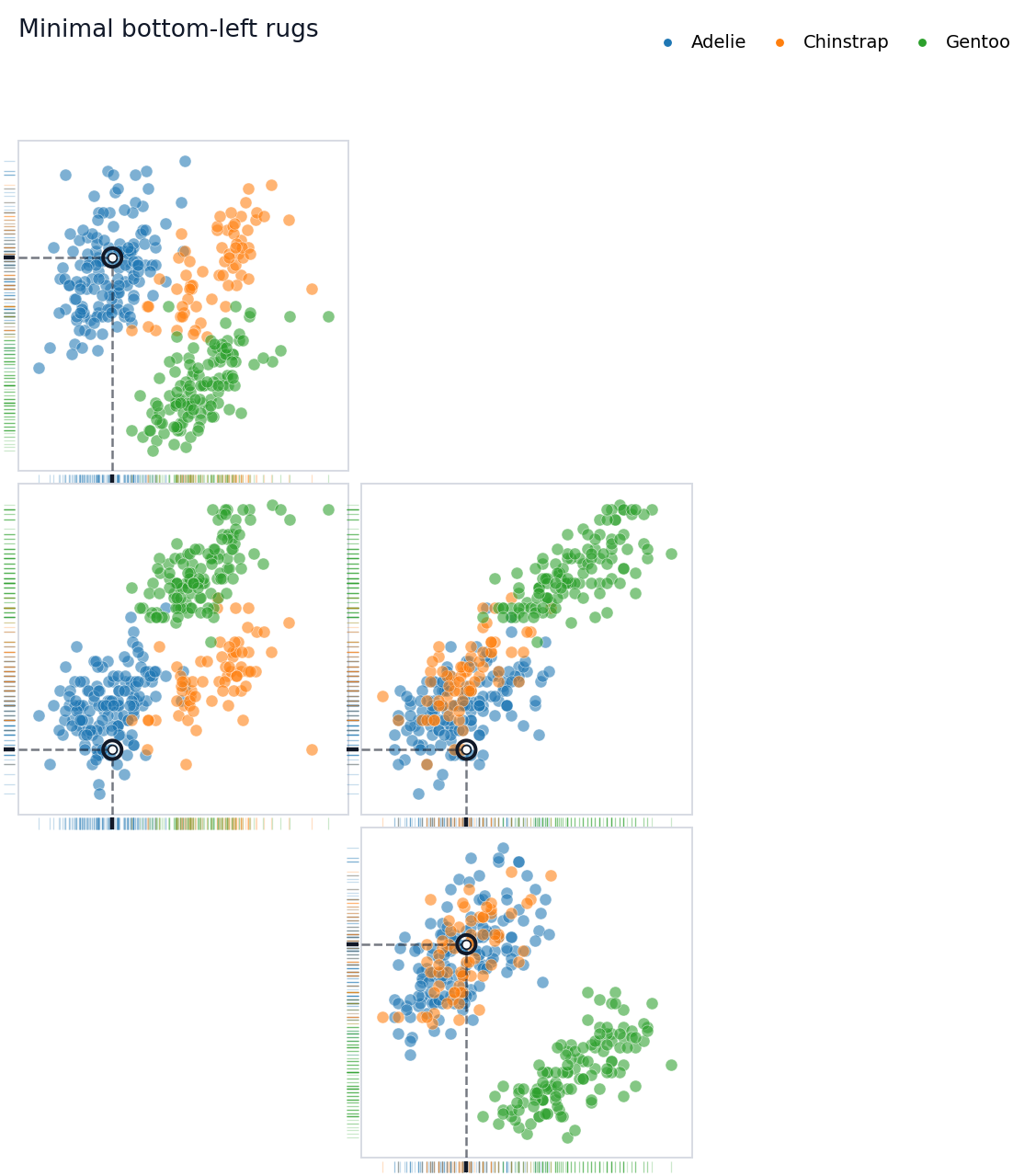

fig = rp.plot(
rug_edges="minimal",
connect_shared_rugs=False,
title="Minimal bottom-left rugs",
)
For quick scripts, the functional wrapper still works. It creates a Rugprint object internally and immediately calls .plot().
fig = rugprint(
penguins,
projections=projections,
layout=layout,
group=group,
highlight=0,
title="One-shot Rugprint call",
)
Rugprint is inspired by Edward R. Tufte’s projection/rug display idea in The Visual Display of Quantitative Information (Graphics Press, 1983).
Start with a few projections rather than every pair. Arrange panels so neighboring projections share one variable. Use rug_edges="shared" when you want the highlighted observation to feel threaded through the map. If the diagram starts to look like a pairplot, reduce labels and ticks before adding more panels.
